PRODUCT

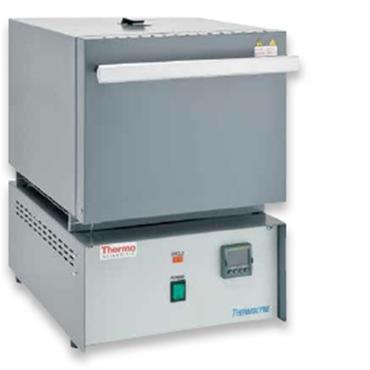

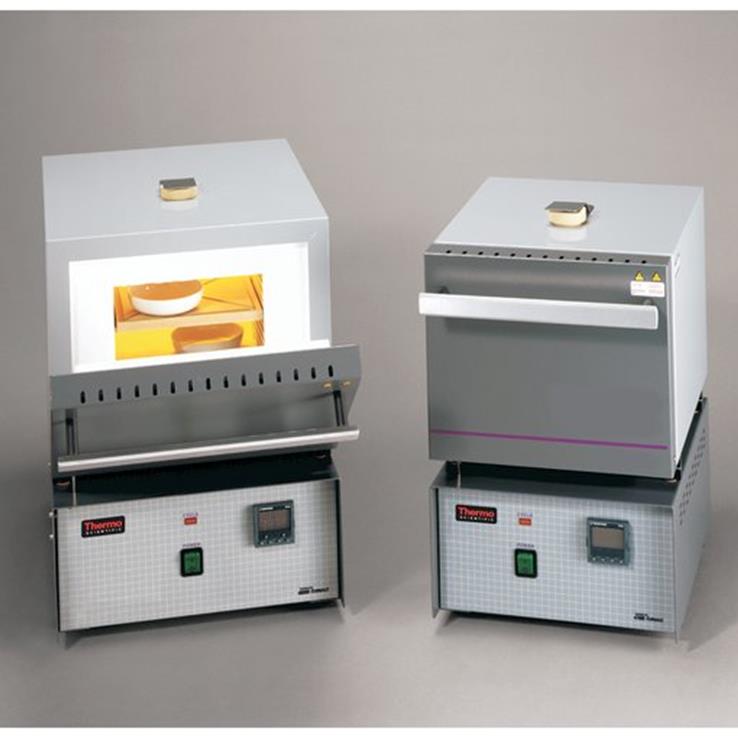

  • [1200] Thermolyne Benchtop Muffle Furnaces

    일반적인 실험용에 적합하며 중량분석, 유기 비유기 샘플의 회분화, 소결 및 정량 분석, 강열 처리에 적합한 장비로 에너지 소비를 최소화 하였습니다.

    제조사

    Thermo Scientific Thermolyne U.S.A.

    모델명

    1200 Benchtop Muffle Furnaces

    최대온도

    1200도

    용량선택

    5.8L

    응용분야

    일반적인 실험실용 포함 ; 중량분석, 유기 및 비유기 샘플의 회분화, 소결, 정량분석, 열처리 등

    도어타입

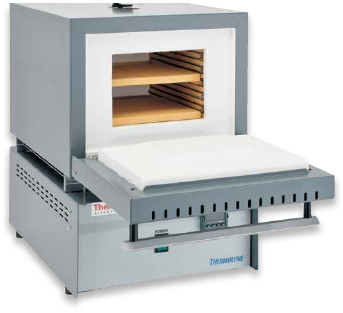

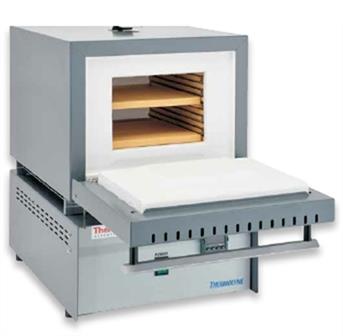

    Drop-down 방식

    특징

    . 빌트인 배기포트는 오염물질 및 습기를 제거하고 발열체 및 장비의 수명을 길게 함.
    . 도어 오픈시 안전스위치 작동
    . 과열 방지 장치는 써모커플 및 발열체등을 보호
    . 챔버 양쪽에 두개의 오픈코일 발열체 위치하여 최소의 온도 구배롤 빠른 승온을 가능케 함.
    . 열효율성을 지닌 세라믹 내화물
    . 챔버 후면에 직경 0.321 인치의 온도 모니터링 포트 장착

    컨트롤 선택

    A,B,C,D

제품사양




Reduce energy consumption and increase heatup time

​

- Reaches a 1200°C maximum temperature

- Available in two capacities for added flexibility

- Built-in vent port removes contaminants and moisture to extend the life of the heating element and furnace

- For added protection, the door safety switch stops power to heating elements when door opens

- Thermocouple break protection cuts power to heating elements, preventing a thermocouple failure runaway condition

- Two open coil heating elements on chamber sides assure fast heat-up with minimum temperature gradient

- Thermal-efficient ceramic insulation surrounds chamber for maximum energy efficiency

- 0.312in. dia. port for monitoring chamber temperatures with independent measuring device at rear of chamber


 F47900, F48000 Models

- F47900 models have 2L chamber capacity, F48000 models have 5L chamber capacity



Choice of Temperature Controllers

- Furnaces that use B, C or D control also use a mechanical over-temperature protection relay



- A1: Digital single setpoint control; single display shows actual temperature or setpoint

- B1: Digital single setpoint control with a single ramp to setpoint and a dwell;

         single display shows actual temperature or setpoint; mechanical over-temperature

         protection relay is included

- C1: Digital programmable control with one stored program of 8 segments; mechanical

         over-temperature protection relay is included

- ​D1: Digital programmable control with 4 stored programs, 16 segments per program, and RS-232

         communications interface; mechanical over-temperature protection relay is included

Thermolyne premium large muffle furnaces

•  Thermocouple break protection cuts power to the heating elements, preventing a thermocouple failure runaway condition

•  Furnaces with B1, C1 and D1 control also use a mechanical OTP relay and Platinel II thermocouple

•  Models F6010 and F6018 include Type K thermocouple and cord with plug

•  1-year warranty, including parts and labor

Temperature controller options

•  Controls A1, B1, C1, D1



Capacity

Temperature

Size and weight

Control

Electrical requirements

Plug type

Certification

Catalog number

























0.2 cu. ft. (5.8 L)























Range: 100°C to 1,200°C Stability: ± 0.2°C at 1,000°C Uniformity: ± 3.6°C at 1,000°C

















         Dimensions (D x W x H)

            Interior: 10 x 7 x 5 in.

(25 x 18 x 13 cm)



Exterior: 19.5 x 13.3 x 19 in.

(50 x 34 x 48 cm)



Shipping weight: 60 lb. (27.2 kg)





Single setpoint

240 V, 50/60 Hz, 7.5 A, 1800 W

US: NEMA 6-15

CSA

F48010

240 V, 50/60 Hz, 6.5 A, 1560 W

EU/other countries: CEE 7/7

CE

F48010-33

240 V, 50/60 Hz, 6.5 A, 1560 W

China: 10 A

CE

F48010-33CN

120 V, 50/60 Hz, 15 A, 1800 W

US: NEMA 5-20

CSA

F48015-60

208 V, 50/60 Hz, 7.5 A, 1560 W

US: NEMA 6-15

CSA

F48018







Single setpoint with ramp

240 V, 50/60 Hz, 7.5 A, 1800 W

US: NEMA 6-15

CSA

F48020-DB

240 V, 50/60 Hz, 6.5 A, 1560 W

EU/other countries: CEE 7/7

CE

F48020-33

240 V, 50/60 Hz, 6.5 A, 1560 W

China: 10 A

CE

F48020-33CN

240 V, 50/60 Hz, 6.5 A, 1560 W

Switzerland: SEV1011

CE

F48020-33-CH

240 V, 50/60 Hz, 6.5 A, 1560 W

UK/other countries: BS1363

CE

F48020-33-UK

240 V, 50/60 Hz, 7.5 A, 1800 W

US: NEMA 6-15

CSA

F48020-80

120 V, 50/60 Hz, 15 A, 1800 W

US: NEMA 5-20

CSA

F48025-60





Programmable: 1 program

240 V, 50/60 Hz, 6.5 A, 1560 W

EU/other countries: CEE 7/7

CE

F48020-33-80

240 V, 50/60 Hz, 6.5 A, 1560 W

China: 10 A

CE

F48020-33-80CN

100 V, 50/60 Hz, 14.5 A, 1800 W

Japan: NEMA 5-15

CSA

F48024-80

120 V, 50/60 Hz, 15 A, 1800 W

US: NEMA 5-20

CSA

F48025-60-80

208 V, 50/60 Hz, 7.5 A, 1560 W

US: NEMA 6-15

CSA

F48028-80

Programmable: 5 programs,

RS-232

communications interface

240 V, 50/60 Hz, 7.5 A, 1800 W

US: NEMA 6-15

CSA

F48050

240 V, 50/60 Hz, 6.5 A, 1560 W

EU/other countries: CEE 7/7

CE

F48050-33

120 V, 50/60 Hz, 15 A, 1800 W

US: NEMA 5-20

CSA

F48055-60

208 V, 50/60 Hz, 7.5 A, 1560 W

US: NEMA 6-15

CSA

F48058



 Accessories



Description

Dimensions (D x W x H)

Catalog number

Ceramic Shelf

6.85 x 6.81 x 0.47 in. (17.4 x 17.3 x 1.2 cm)

SH480X1

Hearth Tray

10 x 7.6 x 0.38 in. (25.4 x 19.3 x 0.95 cm)

PH480X1

Stainless-Steel Flexible Exhaust Tubing Kit for venting fumes to proper exhaust system, plus mounting hardware

2.5 in. I.D. x 5 ft.

AY408X1A
