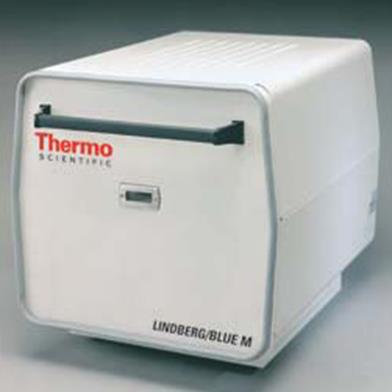

Unique internal construction and outer shell design that reduces external surface temperatures without compromising interior temperature uniformity.


° Features individual heating elements at chamber top, bottom and sides for uniform heat distribution

° Unique Moldatherm ceramic fiber insulation to allow rapid heatup, recovery

  and cooldown rates.  Swing-down door provides convenient loading platform

° Helically coiled, high-temperature alloy wire elements for extended service life

° High-temperature insulation in vestibule and floating plug door to minimize heat loss and improve temperature control

° Spring-loaded door holds door securely shut; door rests in horizontal position when open

° Sight glass for convenient observation of heated load during operation

° Refractory plate heating unit

° Long-life Platinel II thermocouple with 10ft. compensated lead wire and polarized plug

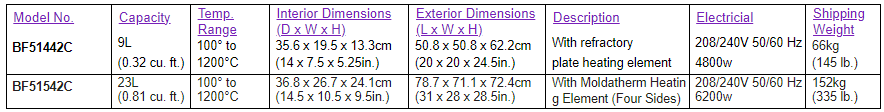

° Rugged, heavy-duty Inconel® hearthplate supports load and protects the furnace from damage due to spillage (Model BF51542C)

° Heating element imbedded in Moldatherm insulation (Model BF51542C)
